LLM Node

The LLM node makes a single call to an AI model to analyze input and produce a response. Use it when you want a focused, predictable model step — summarize a message, classify intent, rewrite text, or extract fields — without giving the model tools or letting it take multiple steps. For tool use and multi-step reasoning, use the Agent node instead.

Adding it to a flow​

Drag an LLM node onto the canvas and connect the previous node to it. Choose a model, then write the messages that make up the prompt.

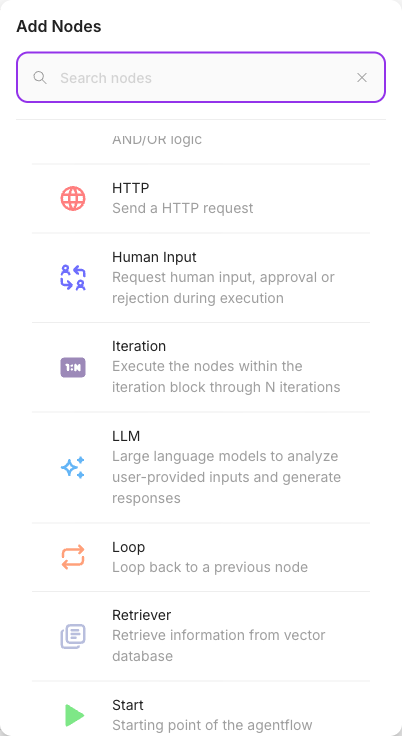

The LLM node in the Add Nodes palette

Inputs​

ParameterDescriptionRequired
ModelThe AI model used for this call. Pick a provider and model, attaching a credential if required.Yes
MessagesThe prompt, as a sequence of messages with roles: System, Assistant, Developer, or User. This is where you write instructions and reference variables.No
Enable MemoryInclude the conversation history in the call so the model has context. On by default.No
Memory TypeHow history is kept: All Messages, Window Size, Conversation Summary, or Conversation Summary Buffer.No
Window SizeNumber of recent messages kept when Memory Type is Window Size. Default 20.No
Max Token LimitToken threshold that triggers summarization when Memory Type is Conversation Summary Buffer. Default 2000.No
Input MessageAn extra user message appended to the end of the conversation before the model responds.No
Return Response AsWhether the reply is recorded as a User Message or an Assistant Message. Default: Assistant Message.No
JSON Structured OutputDefine a schema so the model returns clean, structured JSON (keys, types, descriptions) instead of free text.No
Flow VariablesState keys this node updates as it runs (shown in the full settings).No
Show Output in ChatWhether this node's output appears in the chat history. On by default — turn it off if a Direct Reply node sends the same text, or the visitor gets it twice.No

Outputs​

The LLM node has a single output. Its response flows to the next connected node and is available downstream. If you defined a JSON Structured Output schema, the individual fields can be referenced by later nodes.

The message sequence​

The Messages field is the prompt, built from ordered messages:

  • System — sets the model's role, tone, and rules ("You are a concise assistant that replies in one sentence.").
  • User — the content to act on, often a variable like {{$question}}.
  • Assistant / Developer — optional messages for few-shot examples or extra guidance.

Inside any message you can insert variables with {{ }} — for example {{$question}} for the incoming message or {{$flow.state.name}} for a captured value. See Variables.

Structured output​

Turn on JSON Structured Output when you need the model to return data your flow can act on — not a paragraph of prose. You define each field with a Key, a Type (String, String Array, Number, Boolean, Enum, or JSON Array), and a Description that tells the model what to put there.

For example, a schema with intent (Enum: sales, support, other) and summary (String) makes the model return exactly those two fields. Later nodes can then branch or act on them.

For the full walkthrough — including how to reference the returned fields and a common pitfall — see Structured output.

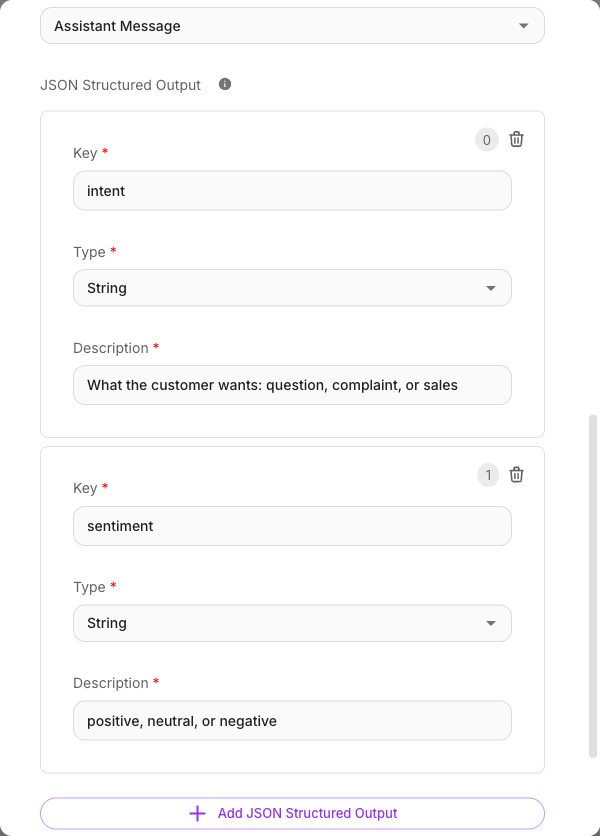

LLM node JSON Structured Output with intent and sentiment fields

Example​

Classify an incoming message before routing it:

  • Model: a fast, low-cost chat model
  • Messages → System: "Classify the user's message. Respond only with the structured fields."
  • Messages → User: {{$question}}
  • JSON Structured Output: intent (Enum: sales, support, other) and urgent (Boolean)

A Condition node after this can then route on the intent value.

LLM node configured with a model and a System message

Tips​

  • Keep the System message short and specific — it has the biggest effect on the output.
  • If the model's reply should go straight to the customer, place the LLM as the last node in that path.
  • Use structured output whenever a later node needs to read a value, not just display text.
  • Prefer the LLM node over the Agent node when you don't need tools — it is simpler and more predictable.
