Custom Function Node

The Custom Function node runs your own JavaScript inside the flow. Use it for logic that the other nodes don't cover — reshaping data, doing a calculation, formatting text, or calling a service in a custom way. The function receives the inputs you pass it and must return a value the rest of the flow can use.

Adding it to a flow

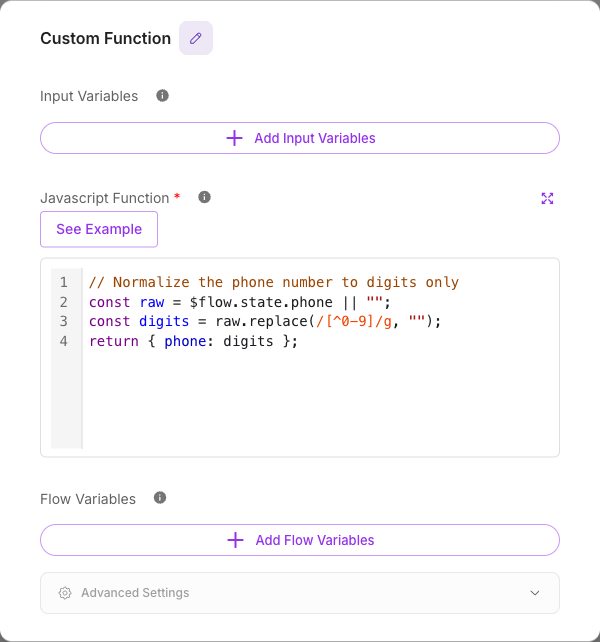

Drag a Custom Function node onto the canvas and connect the previous node to it. Define any input variables, then write the JavaScript body.

Inputs

Parameter	Description	Required
Input Variables	Named values passed into your function. Each has a variable name and a value (which can be a flow variable). Inside the code you read them with the $ prefix — e.g. $foo.	No
Javascript Function	The code to run. It can use libraries available in Flowera and must return a string (or an object that converts to a string).	Yes
Flow Variables	State keys this node updates after it runs, each with a value and an optional "block empty updates" guard.	No
Show Output in Chat	Whether this node's output appears in the chat history. Off by default.	No

Outputs

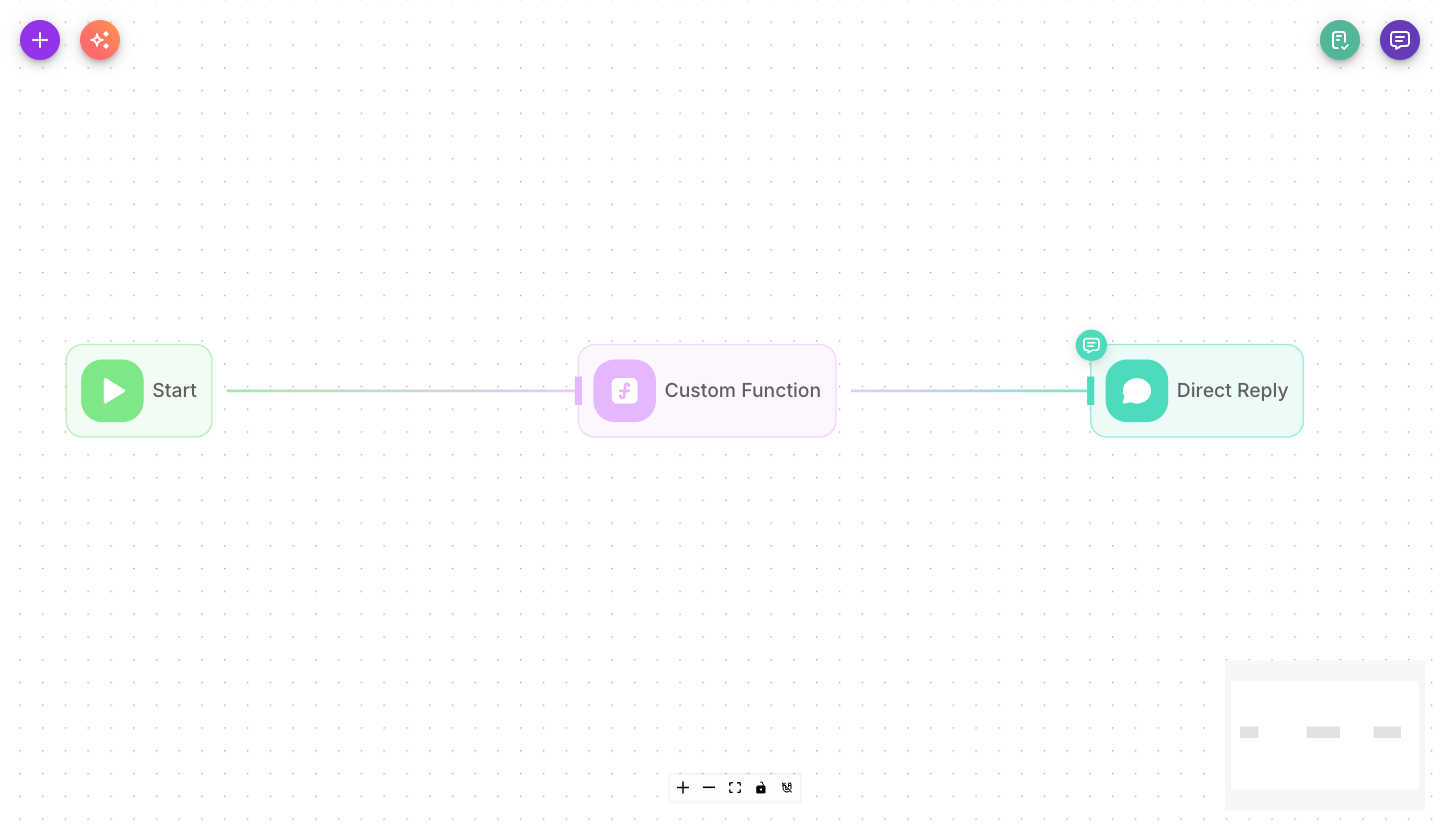

The Custom Function node has a single output: the value your function returns. It flows to the next connected node and can be captured into a Flow Variable for later use.

Writing the function

Your code runs as the body of an async function, so you can use await. A few things are available automatically:

• Input Variables — reference each one with the $ prefix. An input named foo is read as $foo.
• Flow config — $flow.sessionId, $flow.chatId, $flow.chatflowId, $flow.input, and $flow.state.
• Custom Variables — $vars.<name> for your workspace variables.
• Libraries — libraries bundled with Flowera can be required, e.g. const fetch = require('node-fetch').

The function must return a value (a string, or something that converts to one). If it returns nothing, the next node receives an empty result.

Limits

Each run of your function has fixed limits:

Limit	Value	What happens when it is exceeded
Run time	30 seconds (including time spent waiting for external APIs)	The run stops and the node fails with Code execution timed out after 30 seconds
Memory	256 MB	The run stops and the node fails with Code execution exceeded the 256 MB memory limit
Parallel runs	Shared fairly between workspaces: each workspace always gets its share and can use more when the server is idle	Further runs wait for a free slot; if none frees up within 30 seconds the node fails with Code execution is busy, please try again shortly

Your code runs separately from other flows, so a slow or stuck function only affects its own run. If you call an API that can take longer than 30 seconds, use the HTTP node instead — it waits up to 5 minutes and retries.

Examples

Format a name:

// Input Variable: rawName = {{$flow.state.name}}
return $rawName.trim().replace(/\b\w/g, c => c.toUpperCase());

Build a summary string from state:

return `Order ${$flow.state.orderId} for ${$flow.state.name} is confirmed.`;

Call an external API and return its text:

const fetch = require('node-fetch');
try {
    const res = await fetch('https://api.example.com/status');
    return await res.text();
} catch (error) {
    console.error(error);
    return '';
}

Tips

• Always return something. A function that falls off the end without a return hands an empty value to the next node.
• Read inputs with the $ prefix ($foo), and reference flow state with $flow.state.<key>.
• Use console.log / console.error while building — the output shows up in the execution trace.
• For a straightforward web request, the HTTP node is simpler than writing fetch by hand.
• Keep functions short-running: a run longer than 30 seconds is stopped (see Limits).
