Prediction API

The prediction API runs a flow over HTTP. Send a message, get the flow's answer back — from a backend, a mobile app, a script, or an automation platform.

Running a flow over HTTP​

POST /api/v1/prediction/<flowId>

Open a flow, press API Endpoint in the canvas header, and Flowera shows the ready-made request for that flow with its ID filled in — in Python, JavaScript, and cURL.

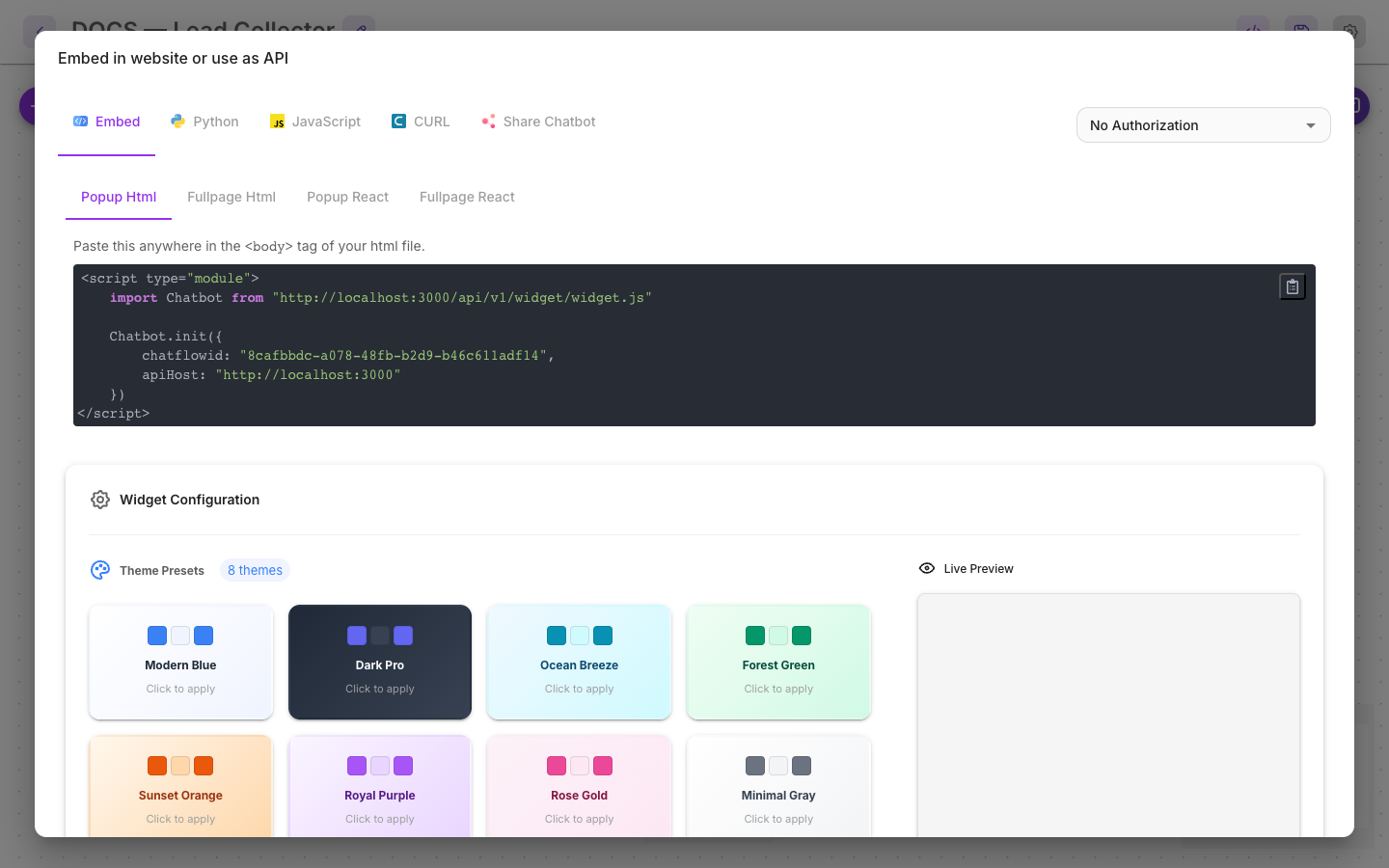

The API dialog, with tabs for Embed, Python, JavaScript, cURL, and Share Chatbot.

Authentication​

See API keys.

Pass the key as a bearer token:

Authorization: Bearer <your_api_key_here>

Whether a key is required depends on the flow. Each flow has a security setting: leave it open and anyone who knows the ID can call it; attach a key and only that key works.

Open endpoints exist for local development. In production, attach a key — an open prediction endpoint is an open invitation to spend your credits.

What temporarily blocks an address is calling flow IDs that don't exist — three 404s inside 15 minutes blocks it for an hour, which is there to stop ID enumeration. A wrong key returns 401 and isn't counted, so a broken integration won't lock itself out; fix the key rather than retrying it regardless.

Request body​

{
  "question": "What are your opening hours?",
  "chatId": "customer-4821",
  "overrideConfig": {
    "vars": { "customerTier": "premium" }
  }
}
FieldRequiredWhat it does
questionYesThe message the flow receives
chatIdNoThe session. Reuse it to continue a conversation
overrideConfigNoValues injected into the run, including flow variables
uploadsNoFiles to attach — images, audio, documents
streamingNotrue streams the answer back as Server-Sent Events. Defaults to false

Sessions and history​

chatId is what makes a conversation a conversation.

  • Pass the same chatId across requests and the flow keeps its memory and flow state — the customer doesn't repeat themselves.
  • Omit it and every request is a stranger with no history.

Use a stable identifier from your own system — a customer ID, a ticket number. Something you can look up later, because that same value is what you'll search for in View Messages and Executions.

Streaming responses​

Streaming returns the answer token by token as it's generated, rather than in one block at the end. Use it wherever a person is watching — the perceived wait is dramatically shorter even though the total time is the same.

For server-to-server calls where nobody is watching, don't bother: the non-streaming response is simpler to handle.

Ask for it with "streaming": true in the request body. The flow has to support it too — one that doesn't end in a streamable node returns ordinary JSON instead, with no error, so check the response's content type rather than assuming the flag took effect.

Handling errors​

StatusMeaningWhat to do
401Bad or missing API keyCheck the key and the flow's security setting
402Insufficient balanceTop up — see Low balance
403Blocked by Allowed Domains, or a share link that isn't publicCheck the flow's Allowed Domains and its Make Public toggle
404No such flowCheck the flow ID. Three of these in 15 minutes blocks your address for an hour
429Rate limitedBack off. Rate limits are configurable per flow
500The flow failedOpen the execution — the trace shows which node

The 500 case is the useful one: a failure in your integration and a failure inside the flow look identical from outside, and the execution trace is what tells them apart. Every API call produces an execution, exactly like an interface run.

Practical notes​

  • Runs cost credit. A test loop is a real charge; watch the Usage Dashboard.
  • Set a timeout. A flow with slow tools can take tens of seconds; a client that gives up at five will look broken when it isn't.
  • Test in the canvas first. The chat panel and the API run the same flow, and it's much faster to debug there.
